The D5 elevates the performance of the predecessor D6N with more weight and horsepower, improved steering capability and a long list of technology offerings to help operators get more work done in less time.

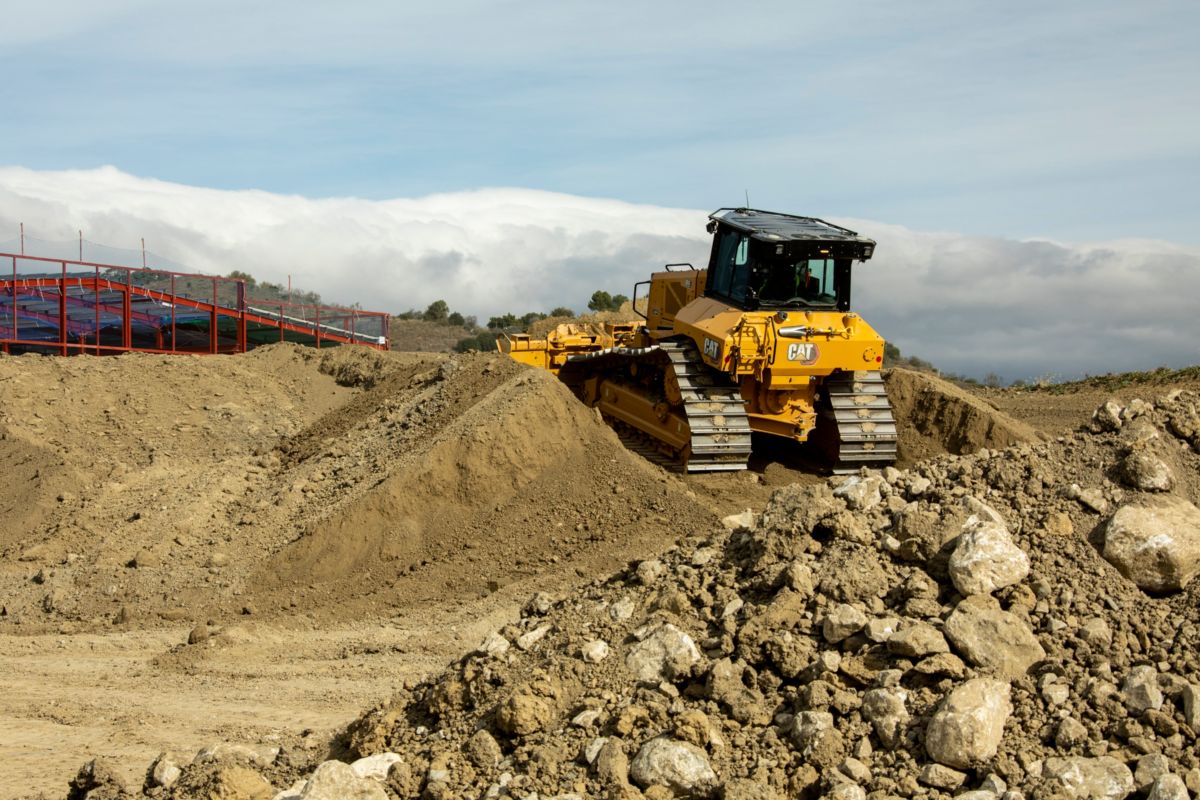

The new Cat D5 is nimble and responsive, it has power for dozing and finesse for grading. A fully automatic transmission gives you seamless acceleration, so you can get the job done quickly. At 127 kW and an operating weight range of 17 180 to 19 170 kg, the new D5 dozer replaces the renowned D6N.
The update from D6N to D5 is part of an effort to make all Cat dozer model names simpler. Over the next couple of years, the Cat dozer range will be renamed from smallest to largest – D1 to D11 – with one model per size class and no more letter modifiers like “N,” “K,” “T.”
Next Generation Value
A fully automatic 3-speed transmission with lock-up clutch offers faster cycle times, as well as optimal power and fuel efficiency. The automatic transmission, steering improvements and enhanced power train controls offer new levels of steering performance and control.
The completely redesigned cab raises the standard in comfort and productivity. Operators will find more space, multiple seat and control adjustments for optimal comfort and a new, easy-to-use 254-mm (10-in) touchscreen operator interface. A standard High Definition rearview camera shows prominently in the main display. Overall visibility is enhanced with about 15% more cab glass area, plus a steeper hood angle that provides 30% better forward visibility to the blade and worksite.
Unprecedented Technology Choices
Technology offerings on the D5 are led by updated, factory-integrated Cat GRADE with 3D. Advanced Inertial Measuring Units (IMU) provide greater speed and accuracy without position sensing cylinders. Smaller antennas are integrated into the cab roof for even better protection and GPS receivers are mounted inside so they can be secured by locking the cab doors. A more intuitive GRADE operator interface works like a smartphone, making it easy for operators to pick up quickly. Android OS platform allows installation of custom apps for more versatility. AutoCarry is included with GRADE with 3D to automate blade lift to maintain desired blade load, improving load consistency and reducing track slip.
Additional GRADE technologies include:
- Cat GRADE with Slope Assist provides basic blade positioning assistance without added hardware or a GPS signal. The updated main display makes the system more intuitive and easier to use.
- Cat Slope Indicate is standard, showing the machine cross-slope and fore/aft orientation on the primary monitor for quick and easy reference.
- Factory Attachment Ready Option (ARO) provides optimal mounting locations, brackets, and hardware and simplifies installation of an aftermarket grade control system. The new D5 makes it easier to install any brand of the grade control system, with specific mounting locations for grade control components.
In addition to GRADE features, simple onboard technologies help with top performance and quality grades. Blade Load Monitor gives real-time feedback on current vs. optimal blade load to help optimize pushing capacity. Traction Control detects track slip and temporarily reduces track power to allow the operator to adjust blade load and limit track slip. Second generation Stable Blade works seamlessly with operator blade inputs for smoother surfaces when grading manually.
Cat LINK telematics technology helps take the complexity out of managing job sites – by gathering data generated by equipment, materials, and people – and serving it up in customizable formats.
- Product Link collects data automatically and accurately from equipment assets – any type and any brand – which can be viewed online through web and mobile applications.
- Access information anytime, anywhere with VisionLink. Cat dealers can help conﬁgure a customized subscription, available with cellular or satellite reporting or both.
- Remote Services is a suite of technologies consisting of Remote Troubleshoot and Remote Flash that helps improve your job site efficiency.
- Application Profile and Operator ID help you save time by saving preferred machine settings. Operator ID with Security provides an optional additional level of security by requiring an operator to enter an ID before the machine will start.
Enhanced Power Train Control
The D5 helps make steering and slope work easier with advanced controls that automatically manage the power train and brakes. There are no extra operator inputs to think about – the built-in features just work in the background.
- Hill Descent Control maintains preselected machine speed, without using the service brakes, for added control when working downhill.
- Hill Hold automatically engages the brakes to hold position when in neutral on a slope.
- Decel Brake Pedal controls machine speed to a complete stop, or for smooth inching control.
- Steering Radius Control uses steering and decel pedal input to automatically downshift for a tighter turning radius and more maneuverability.
The D5 is available in Standard or Low Ground Pressure (LGP) configurations, with either a push arm or Variable Pitch Angle Tilt (VPAT) blade. A folding VPAT blade is available to help meet regional transport width requirements. Waste, Forestry/Land Clearing and Fire Dozer configurations offer specialized factory-installed guarding and other features to help take on the toughest applications.
D5 Product specifications
|Power Train||Fully Automatic 3-Speed|
|Emissions||EU Stage V, U.S. EPA Tier 4 Final,
Japan 2014 (Tier 4 Final), Korea Tier 4 Final
|Net Power Rated (1,770 rpm)|
|ISO 9249/SAE J1349||127 kW||170 hp|
|ISO 9249/SAE J1349 (DIN)||172 hp|
|Operating Weight (with drawbar)|
|VPAT||17 180 kg||37,875 lbs|
|VPAT Fine Grading||17 780 kg||39,198 lbs|
|LGP VPAT||19 170 kg||42,263 lbs|
|SU||17 340 kg||38,228 lbs|
|With three-shank ripper add||1 393 kg||3,071 lb|
|VPAT/Foldable VPAT||3.5 m3||4.6 yd3|
|LGP VPAT||4.0 m3||5.2 yd3|
|LGP VPAT Foldable||4.2 m3||5.5 yd3|
|SU||4.3 m3||5.6 yd3|
