[Video] The New Compact Hyundai HX85A Excavator From Now Available in the European and UK Market

As an extension of Hyundai’s range of medium-size excavators – and in response to requests from Hyundai customers – the all-new HX85A concept machine enters the UK and European markets. This compact excavator in the 8 – 9 tonclass is equipped with a two-piece boom* and is the ideal machine to work in urban environments. The new HX85A is now available in both the UK and Europe.

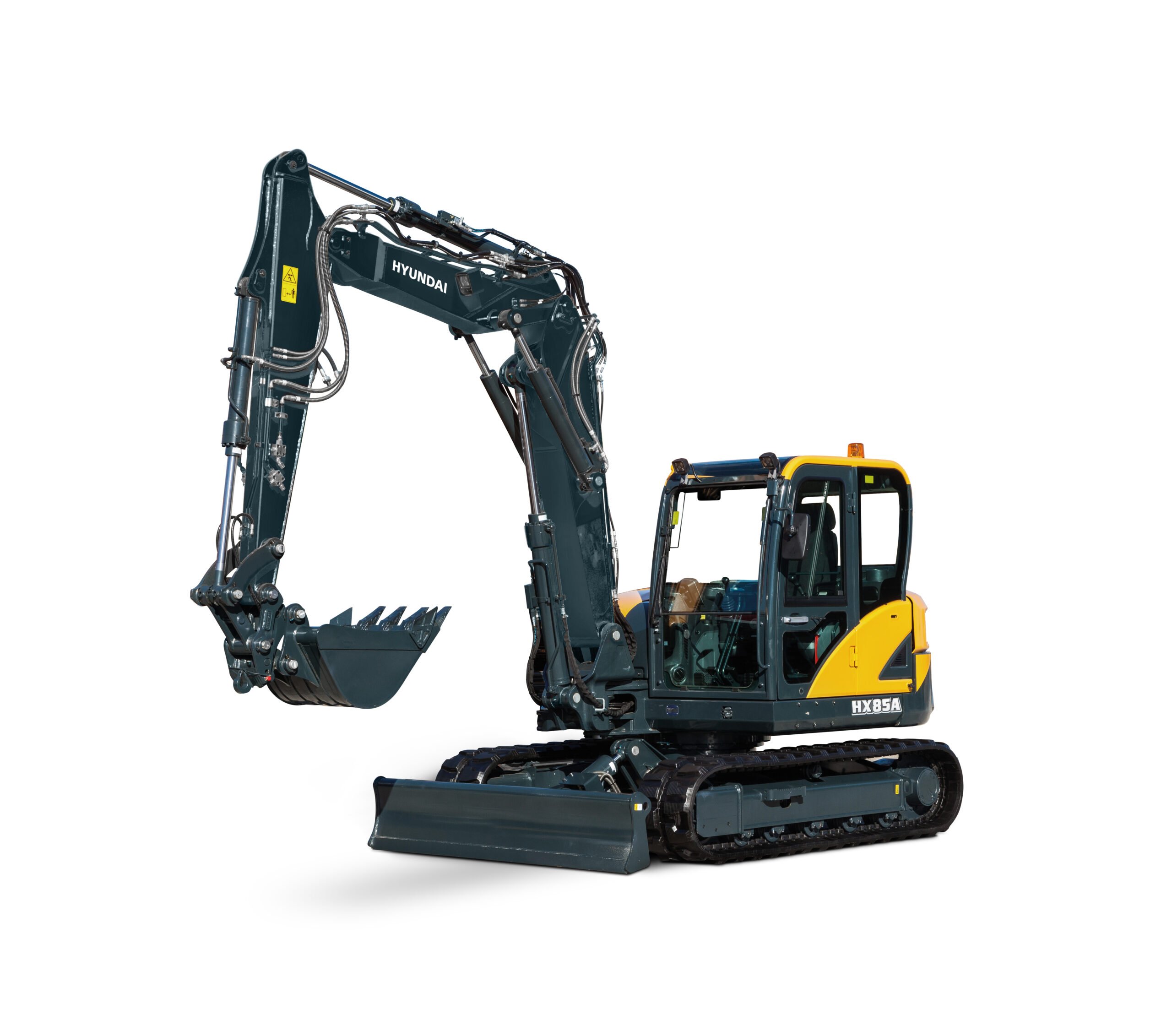

HX85A – unveiling a striking new rear hood design

The HX85A’s rear hood design helps to improve the stability and rear visibility of the machine. The cabin interior is well laid out and fitted with the latest intuitive technology, which allows the operator to take full control over his/her machine on the job site. The advanced technology takes some of the pressure from the operator alleviating fatigue during a long workday. Operator comfort and convenience is also guaranteed with the ergonomic interior design and excellent all-round visibility.

HX85A offers exceptional power

The 49.9 kW-Yanmar engine delivers 66.9 hp, which results in exceptional efficiency, improved fuel economy and far less engine noise. The load-sensing hydraulic system offers excellent performance – particularly when conducting simultaneous multiple machine movements. The two-piece boom gives the midi-excavator an all-dynamic working range and considerable flexibility. It allows the machine to extend the maximum reach of the arm (7,48 m) in addition to working in close proximity to its own tracks. Effective vertical digging is effortless (max. digging depth of 4,66 m), as is an impressive loading height.

The versatility of the HX85A can further be increased by using the optional 4-way angle blade – levelling has never been so simple. Although the machines’ upper structure is of conventional type, it benefits from a reduced tailswing with a rear swing radius of just 1,60 m (measured from machine centre). The overall compact dimensions of the HX85A gives the machine great stability and at the same time, makes it perfect to work in confined spaces, such as urban job sites.

Commenting on the HX85A

Peter Sebold, Product Specialist at HCEE, comments:

“The new HX85A is perfectly equipped to answer customer demands for a compact and versatile machine that can show its muscles on job sites where space is tight, and performance is key. It is proof that Hyundai CE has finally become an established player in the segment of power utility machines.”

Technical specifications

  • Model HX85A
  • Engine Yanmar 4TNV98C (Stage V)
  • Net Power 49.9 kW / 66.9 hp
  • Operating weight 9,250 kg (with 2-piece boom)
  • Max. digging depth 4,660 mm
  • Max. digging reach 7,480 mm
  • Tail swing radius 1,600 mm

More About Hyundai Construction Equipment Europe

Hyundai Construction Equipment Europe is a widely recognized leader in the European construction equipment market. Through highly advanced factory automation, a zero-tolerance quality control inspection system and innovative engineering we offer a wide range of construction equipment to satisfy the demands of our customers. We manufacture heavy equipment for our Construction Equipment business unit including hydraulic excavators, wheel loaders and skid steer loaders. Through our Material Handling business unit we offer a wide range of forklifts (including LPG, electric and diesel powered lift trucks) & warehouse equipment to satisfy customers’ ever-growing demands. HCEE markets its products through a qualified network of over 140 dealers in more than 30 countries.

Source: Hyundai
