[Job Story] Madrid’s Football Stadium Refurbished With 18 Liebherr Cranes

    Legendary football stadium Estadio Santiago Bernabéu in Madrid is currently being refurbished. It will reopen in 2022 in the form of a superb, ultra-modern stadium with a wide range of positive features.

    Safe installation – Gruas Aguilar and Eurogruas 2000 simulated the crawler cranes’ hoists in advance so that they could then position the massive girders for the new roof perfectly.

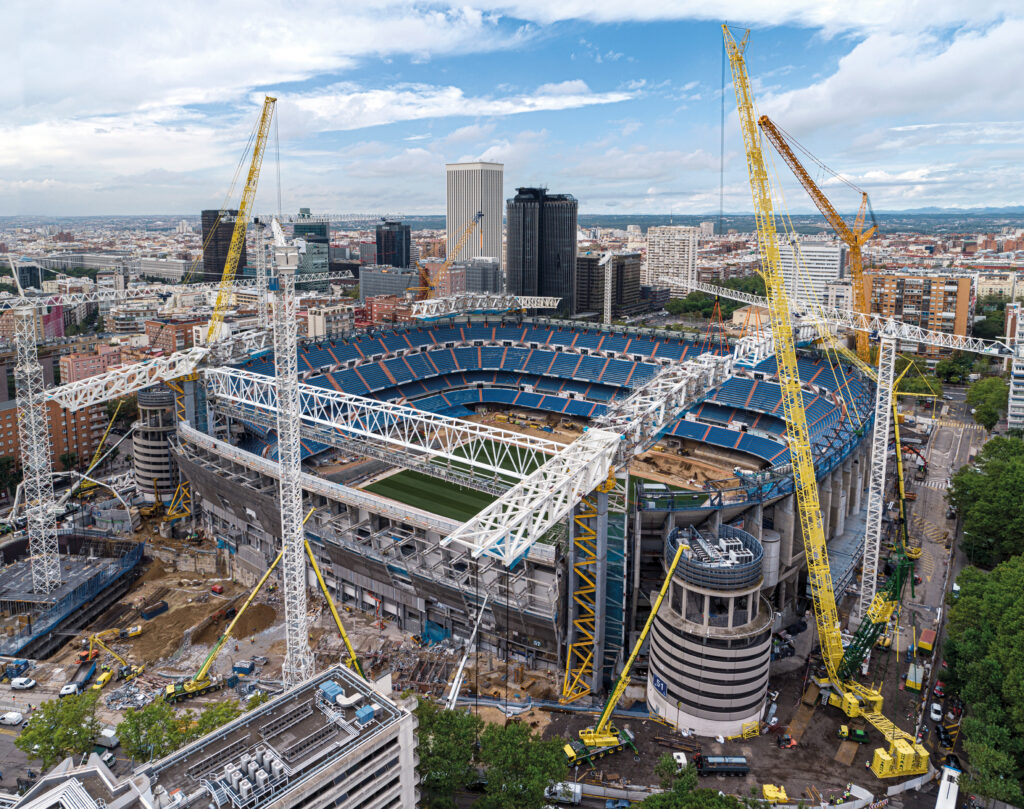

    Established crane contractor Gruas Aguilar has, at times, had 18 Liebherr mobile and crawler cranes on the site with lifting capacities ranging from 40 to 1200 tonnes. “Winning the order for the crane work at the Bernabéu was not only a routine job for us, but also a great challenge”, says Luis Aguilar, owner of Gruas Aguilar.

    “The logistics and planning required for all these cranes in all different sizes was enormous. From the compact LTC 1050-3.1 and LRT 1100-2.1 rough-terrain crane to the LTM 11200-9.1, there was a full team on the pitch”, adds Aquilar and continues: “Obviously, we were reliant on the usual competent, fast response from Liebherr-Iberica’s after-sales service team.”

    LR 1800-1.0, LR 1600/2 and LR 1600/2-W

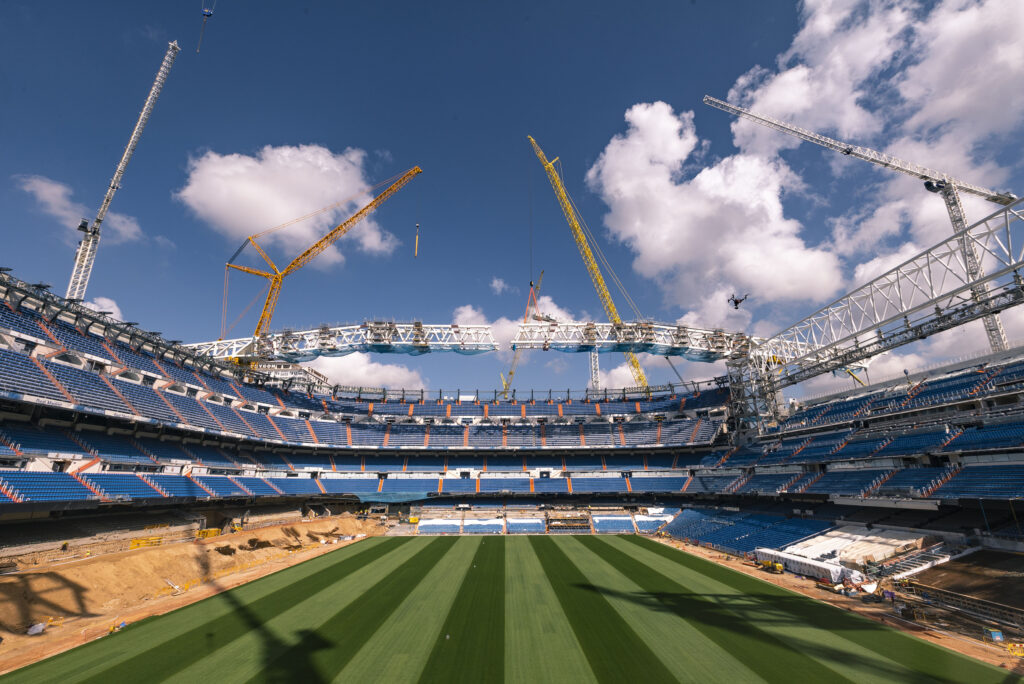

    The three-man formation consisting of an LR 1600/2 and an LR 1600/2-W from Gruas Aguilar, together with an LR 1800-1.0 from Eurogruas 2000, produced a strong performance. They were on-site permanently from June to December 2020 carrying out a wide variety of 2/5 hoisting work. The gigantic heavy girders for the roof structure, in particular, had to be hoisted into position.

    “At times we had 18 Liebherr cranes in action at the site. Obviously, we were reliant on the usual competent, fast response from Liebherr-Iberica’s after-sales service team,” says Luis Aguilar, owner of Gruas Aguilar.

    The LR 1800-1.0 from Eurogruas 2000 impressed as a skillful playmaker. It was demonstrating all its strengths, as Javier Sato, co-owner of the Eurogruas 2000 Group explains:

    “High capacity, compact dimensions, low-cost logistics, and flexible use – they were the features that resulted in us investing in the LR 1800-1.0. It was a very good decision for us and we are proud to have taken delivery of the very first machine at the Bauma in 2019.”

    The working conditions in the center of the city immediately next to the arterial Paseo de la Castellana road were very complex due to the highly constricted space available, heavy loads, and large radii. “We were completely reliant on the flexibility of the derrick ballast”, says Eurogruas 2000’s Project Manager, Jose Garcia and Juan Ayora.

    “The V-Frame enabled us to position loads weighing between 40 and 213 tonnes with a very wide range of radii safely and precisely without having to move the crane on the site.” The experienced crane contractor simulated every hoist in detail on a computer beforehand with the site team. Garcia and Ayora continue:

    “The teams from Liebherr-Iberica and Liebherr in Ehingen meant we had excellent, successful teamwork, particularly configuring the booms and planning the hoists.”

    The new star among stadiums

    The Bernabéu Stadium, one of the real landmarks of Madrid, has a long history. For Santiago Bernabéu, who was initially a player before he became a coach and then President of Real Madrid, the stadium represented the achievement of a lifelong dream. He collected donations and was able to start the construction work in 1944, during the Second World War. The stadium was then opened in 1947. After several modifications and extensions over the past few decades, the stadium, which has hosted a whole series of international finals, is currently once again filled with construction machines.

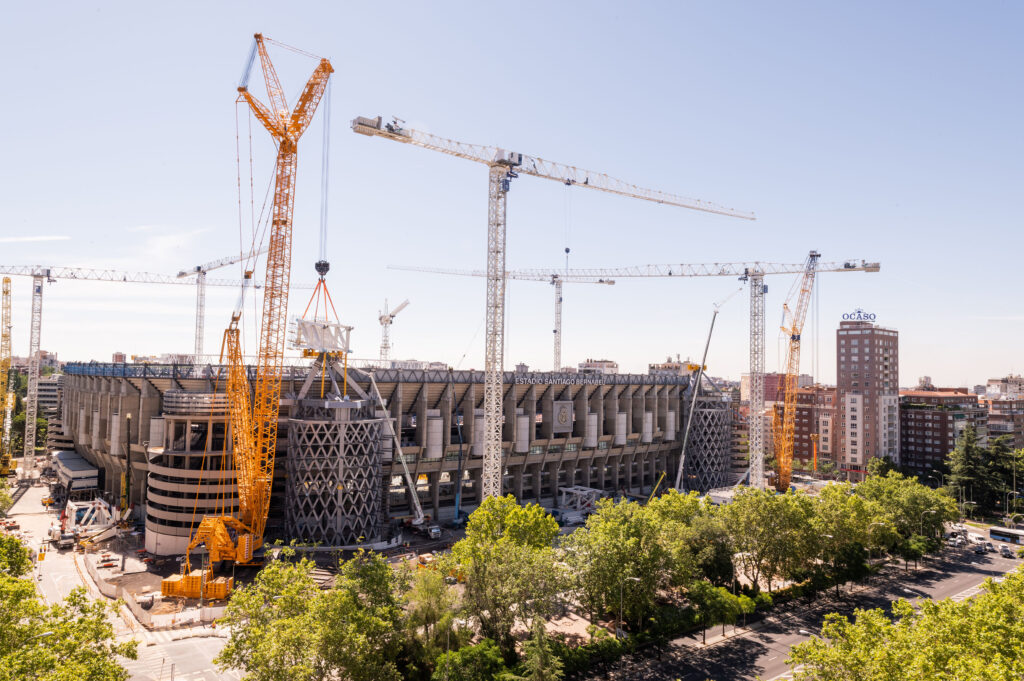

    High lifting capacities, constricted site conditions and large radii – the LR 1800-1.0 from Eurogruas 2000 is perfect for the job at the Bernabéu Stadium in Madrid.

    By 2022, the Bernabéu will be an ultramodern stadium with a hydraulically adjustable roof structure, lowering hybrid turf, and new shopping, business, and leisure facilities. The façade can be illuminated during the hours of darkness using LEDs in a wide range of scenarios. There is a promenade around the entire structure at the top of the façade which provides a panoramic view of life in the neighboring streets and the sporting excellence or events taking place in the stadium itself.

    After it has been completed, the Bernabéu will be an ultramodern stadium with a hydraulically adjustable roof structure, lowering hybrid turf and new shopping, business and leisure facilities.
